Lindapter

TYPE B

Steel Clamp


• Type B clamp with flat top which allows the bolt head or nut to be rotated

• Suitable for use with bolts, studs, tie rods, J-bolts, parallel flanges, and tapered flanges up to 8°

• The clamp is installed correctly when the area ‘K’ grips the flange

• The tail must be chosen to suit the thickness of the flange being gripped

• Malleable iron, bright zinc plated/hot dip galvanized

• Contact Edge for detailed specs and design data
Scroll down for full product description

Item # Safe Working Loads (5:1 Factor Of Safety) Tensile/Safe Working Loads (5:1 Factor Of Safety) FrictionTorque (ft./ lbs.)Unit Of
Measure
PriceMaterial
List for Quote
Buy
Online
Expand Table to Show All Columns
LDLB037L330-15 Ea. Add
LDLB037M330-15 Ea. Add
LDLB037S330-15 Ea. Add
LDLB050L1,30015750 Ea. $ 6.40 Add Buy
LDLB050M1,30015750 Ea. $ 6.40 Add Buy
LDLB050S1,30015750 Ea. $ 6.40 Add Buy
LDLB062L1,640337108 Ea. $ 9.81 Add Buy
LDLB062M1,640337108 Ea. $ 9.81 Add Buy
LDLB062S1,640337108 Ea. $ 9.81 Add Buy
LDLB075L3,300674210 Ea. $ 16.42 Add Buy
LDLB075M3,300674210 Ea. $ 16.42 Add Buy
LDLB075S3,300674210 Ea. $ 16.42 Add Buy
LDLB100L4,4301,012362 Ea. Add
LDLB100M4,4301,012362 Ea. Add
LDLB100S4,4301,012362 Ea. Add
Item Specifications

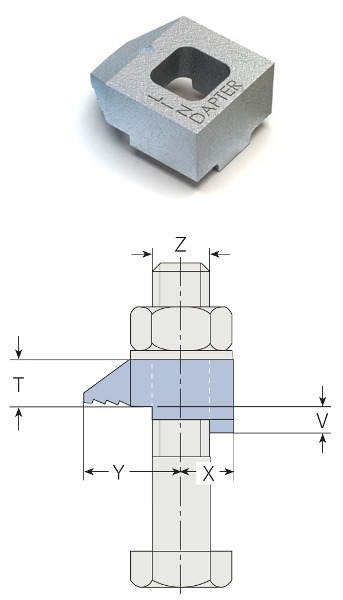

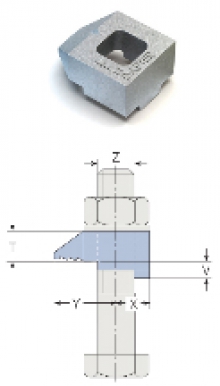

Item # Grade 5 Bolt Size ZSafe Working Loads (5:1 Factor Of Safety) Tensile/Safe Working Loads (5:1 Factor Of Safety) FrictionTorque (ft./ lbs.)Tail LengthUnit Of
Measure
PriceMaterial
List for Quote
Buy
Online
LDLB037L[3/8]”330-15Long Ea. Add
LDLB037M[3/8]”330-15Medium Ea. Add
LDLB037S[3/8]”330-15Short Ea. Add
LDLB050L[1/2]”1,30015750Long Ea. $ 6.40 Add Buy
LDLB050M[1/2]”1,30015750Medium Ea. $ 6.40 Add Buy
LDLB050S[1/2]”1,30015750Short Ea. $ 6.40 Add Buy
LDLB062L[5/8]”1,640337108Long Ea. $ 9.81 Add Buy
LDLB062M[5/8]”1,640337108Medium Ea. $ 9.81 Add Buy
LDLB062S[5/8]”1,640337108Short Ea. $ 9.81 Add Buy
LDLB075L[3/4]”3,300674210Long Ea. $ 16.42 Add Buy
LDLB075M[3/4]”3,300674210Medium Ea. $ 16.42 Add Buy
LDLB075S[3/4]”3,300674210Short Ea. $ 16.42 Add Buy
LDLB100L1”4,4301,012362Long Ea. Add
LDLB100M1”4,4301,012362Medium Ea. Add
LDLB100S1”4,4301,012362Short Ea. Add
