Lindapter-Structural Fastening » Steel Connections - Girder Clamps
Lindapter

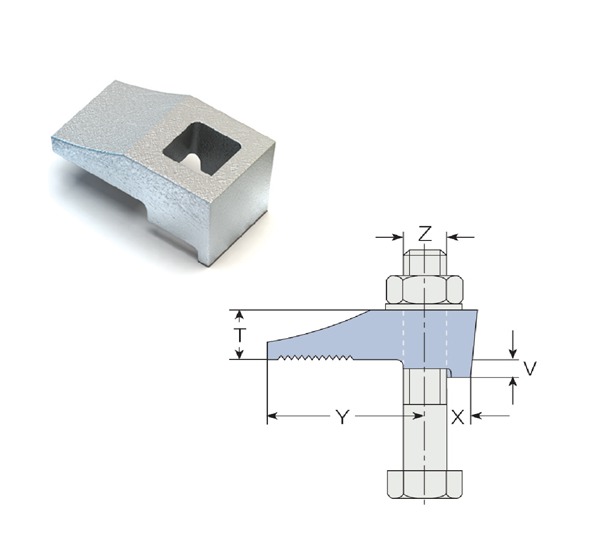

TYPE BSLN

Steel Clamp

• Type BSLN clamp designed with longer nose to extend contact area with the steel section

• For parallel flanges only

• Can be used with types CW, P1 short and P2 short

• Malleable iron, bright zinc plated/hot dip galvanized

• Contact Edge for detailed specs and design data
Scroll down for full product description

Item # Safe Working Loads (5:1 Factor Of Safety) Tensile/Torque (ft./ lbs.)Unit Of
Measure
 PriceMaterial
List for Quote		Buy
Online
Expand Table to Show All Columns
LDLBSLN062 HDG1,640108 Ea. $ 14.94 Add Buy
Item Specifications
x

Item # Grade 5 Bolt Size ZSafe Working Loads (5:1 Factor Of Safety) Tensile/Torque (ft./ lbs.)Unit Of
Measure
 PriceMaterial
List for Quote		Buy
Online
LDLBSLN062 HDG[5/8]”1,640108 Ea. $ 14.94 Add Buy
