ITW Redhead Seismic Wedge AnchorsTrubolt® +

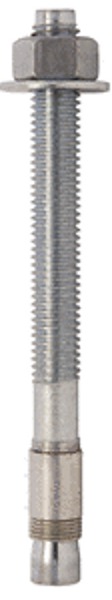

"Trubolt® + Wedge anchors consist of a high-strength threaded stud body, expansion clip, nut and washer. Anchor bodies are made of plated carbon steel. The expansion clip consists of a split cylindrical ring with undercutting grooves. • The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verifification • Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors • ICC Evaluation Service, Inc. # ESR-2427 • Category 1 performance rating • 2006 IBC and 2009 IBC compliant • Meets ACI 318 ductility requirements • Tested in accordance with ACI 355.2 and ICC-ES AC193 • For use in seismic zonesA, B, C, D, E, & F • 3/8"", 1/2"", 5/8"" & 3/4"" diameter anchors • listed in ESR-2427 • City of Los Angeles - #RR25867 • 2009 IBC Compliant" Scroll down for full product description
|
Item # | Thread Length (in.) | Unit Of Measure |
Material List for Quote |
Item Specifications
Item # | Thread Length (in.) | Anchor Dia. (in.) & Drill Bit Size (Threads) per I | Overall Length (in.) | Max Thickness of Material to be Fastened in. (mm) | Qty/Wt per Box (lbs.) | Unit Of Measure |
Material List for Quote |
RACWS-1236 | 2[1/8] | [1/2]-13 | 3[3/4] (95.3) | [3/4] (19. | 25/5.7 | Ea. | Add |
RACWS-1244 | 2[7/8] | [1/2]-13 | 4[1/2] (114.3) | 1[1/2] (38 | 25/7 | Ea. | Add |
RACWS-1254 | 3[7/8] | [1/2]-13 | 5[1/2] (139.7) | 2[1/2] (63 | 25/8 | Ea. | Add |
RACWS-1270 | 5[3/8] | [1/2]-13 | 7 (177.8) | 4 (101.6) | 25/9.2 | Ea. | Add |
RACWS-34100 | 5[3/4] | [3/4]-10 | 10 (254) | 6 (152.4) | 10/11.9 | Ea. | Add |
RACWS-3454 | 3[5/8] | [3/4]-10 | 5[1/2] (139.7) | 1[1/2] (38 | 50/7.6 | Ea. | Add |
RACWS-3462 | 4[3/8] | [3/4]-10 | 6[1/4] (158.8) | 2[1/4] (57 | 10/8.5 | Ea. | Add |
RACWS-3470 | 5[1/8] | [3/4]-10 | 7 (177.8) | 3 (76.2) | 10/9 | Ea. | Add |
RACWS-3484 | 5[3/4] | [3/4]-10 | 8[1/2] (215.9) | 4[1/2] (11 | 10/10.5 | Ea. | Add |
RACWS-3830 | 1[5/8] | [3/8]-16 | 3 (76.2) | [5/8] (15. | 50/5.3 | Ea. | Add |
RACWS-3836 | 2[3/8] | [3/8]-16 | 3[3/4] (95.3) | 1[3/8] (34 | 50/5.9 | Ea. | Add |
RACWS-3850 | 3[5/8] | [3/8]-16 | 5 (127) | 2[5/8] (66 | 50/7.3 | Ea. | Add |
RACWS-5850 | 3[3/16] | [5/8]-11 | 5 (127) | 1[1/8] (28 | 10/4.7 | Ea. | Add |
RACWS-5860 | 4[3/16] | [5/8]-11 | 6 (152.4) | 2[1/8] (54 | 10/5.4 | Ea. | Add |
RACWS-5870 | 5[3/16] | [5/8]-11 | 7 (177.8) | 3[1/8] (79 | 10/6.2 | Ea. | Add |
RACWS-5884 | 5[3/4] | [5/8]-11 | 8[1/2] (215.9) | 4[5/8] (11 | 10/8 | Ea. | Add |
