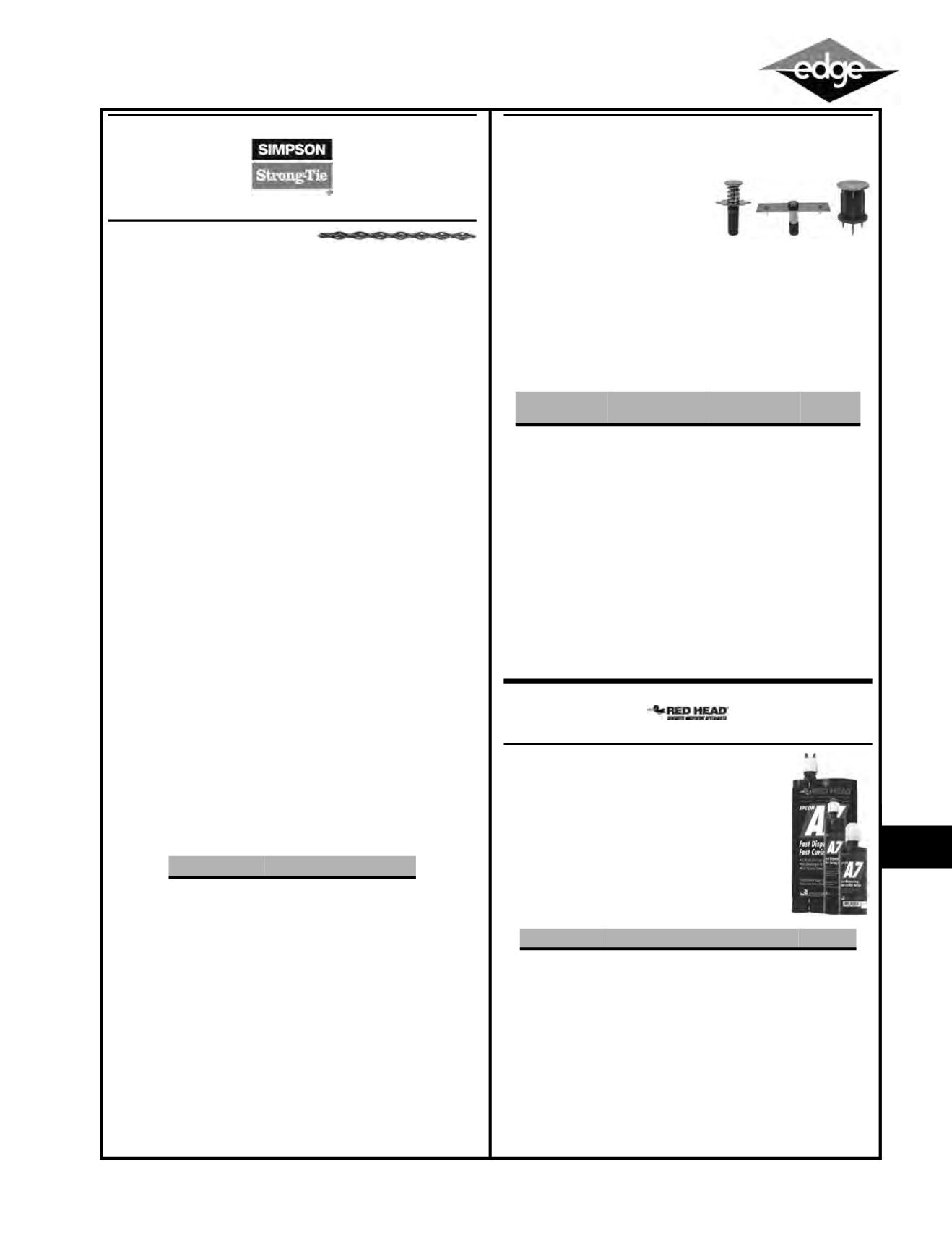

SIMPSON STRONG-TIE®
Helical Wall Tie
HELI-TIE™
The Heli-Tie™ is a stainless steel helical tie used to anchor building
façades to structural members or to stabilize multiple wythe brick
walls. The helical design allows the tie to be driven quickly and easily
into a predrilled pilot hole (or embedded into mortar joints in new
construction) to provide a mechanical connection between a
masonry façade and its backup material or between multiple wythes
of brick. As it is driven, the fins of the tie undercut the masonry to
provide an expansion-free anchorage that will withstand tension and
compression loads. The Heli-Tie is installed using a proprietary
setting tool that is used with an SDS-Plus shank rotohammer to drive
and countersink the tie. Heli-Tie performs in concrete and masonry
as well as wood and steel studs.
•
Installs quickly and easily - With the rotohammer in drill and
hammer mode the tie installs faster than competitive products.
•
Provides an inconspicuous repair that preserves the appearance
of the building. After installation the tie is countersunk up to 1/2"
below the surface, allowing the tie location to be patched.
•
Corrosion resistant stainless steel.
•
Larger core diameter provides higher torsional capacity resulting
in less deflection due to “uncoiling” under load.
•
Fractionally sized anchor - no metric drill bits required.
•
Patented manufacturing process results in a more uniform helix
along the entire tie allowing easier driving and better interlock with
the substrate.
•
“Simpson Heli-Tie” printed on every tie for easy identification and
inspection.
•
Material: 304 stainless steel (316 available by special order,
contact Simpson for details)
•
Test Criteria: CSA A370
Installation:
•
Drill pilot hole through the façade material and to the specified
embedment depth + 1" in the backup material using appropriate
drill bit(s). Drill should be in rotation only mode when drilling into
soft masonry or into hollow backing material.
•
Position the Heli-Tie in the installation tool and insert the tie into
the pilot hole.
•
With the SDS-Plus rotohammer in rotation and hammer mode,
drive the tie until the installation tool shoulders up to the exterior
surface of the masonry and the drive pin is fully extended. The
installation tool will countersink the tie below the surface. Patch the
hole in the facade using a color-appropriate material.
SIMPSON STRONG-TIE®
Cast-in Place, Internally Threaded Inserts
BLUE BANGER HANGER®
•
Blue Banger Hanger®
internally-threaded inserts are
cast into the underside of the
concrete deck after being fastened
to the top of wood forms or metal
deck. Once the concrete has
cured, the anchor provides an attachment point for threaded rod
used to hang electrical, mechanical and plumbing utilities
•
The Blue Banger Hanger insert is the only pre-pour insert to offer
the patented multi-thread design which allows one size insert to
handle multiple diameters of threaded rod
•
MATERIAL: Carbon steel
•
FINISH: Yellow-zinc dichromate
•
Code Approvals: Factory Mutual 3024378 (except roof deck
insert); Underwriters Laboratories File EX3605 (except roof deck
insert)
ITW REDHEAD
A7 Acrylic Adhesives
Fast Dispensing/Fast Curing
Epcon
•
All weather formula
•
No drip, no sag, easy clean up
•
Fast curing time, 35 minutes at 60°F
•
NSF 61 approved
•
Works in damp holes and underwater
applications
Item #
Size Qty per Box
SNHELI37600
³⁄₈
” x 6”
100
SNHELI37700
³⁄₈
” x 7”
100
SNHELI37800
³⁄₈
” x 8”
100
SNHELI37900
³⁄₈
” x 9”
100
SNHELI371000
³⁄₈
” x 10”
150
SNHELI371100
³⁄₈
” x 11”
150
SNHELI371200
³⁄₈
” x 12”
150
Item #
For Rod Dia. (in.)
Deck Hole
Diameter (in.) Box Qty.
Metal Deck Insert
SNBBMD2550
¹⁄₄
,
³⁄₈
,
¹⁄₂
¹³⁄₁₆
-
⁷⁄₈
100
SNMMBD3762
³⁄₈
,
¹⁄₂
,
⁵⁄₈
1
¹⁄₈
-1
³⁄₁₆
50
SNBBMD6275
⁵⁄₈
,
³⁄₄
1
³⁄₁₆
-1
¹⁄₄
50
Roof Deck Insert
SNBBRD2550
¹⁄₄
,
³⁄₈
,
¹⁄₂
⁷⁄₈
50
Wood Form Insert
SNBBWF2550
¹⁄₄
,
³⁄₈
,
¹⁄₂
200
SNBBWF3762
³⁄₈
,
¹⁄₂
,
⁵⁄₈
N/A
150
SNBBWF6275
⁵⁄₈
,
³⁄₄
N/A
150
Item #
Desc.
Box Qty.
RAA7-5
5 Fluid Ounce Cartridge
12
RAA7-8
8 Fluid Ounce Cartridge
12
RAA7-10
10 Fluid Ounce Cartridge
6
RAA7-28
28 Fluid Ounce Cartridge
4
RAA-24 Mixing Nozzle for A7-8 Cartridge
RAA101 Hand Dispenser for A7-8 Cartridge
RAA102
Hand Dispenser for A7-28
RAA500-KIT
Dispensing Kit Package
RAA501 Reusable Caulking Gun Adaptor
