Milwaukee Electric Tool Corp.

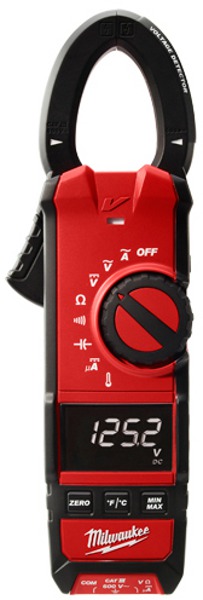

Clamp Meter for HVAC/R


The Milwaukee Clamp Meter for HVAC/R is a heavy-duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional HVAC/R technician, the 2236-20 Clamp Meter provides a wide 1.3” jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. In addition, the Milwaukee Clamp Meter for HVAC/R was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity.

• Measures up to 600 amps AC, Large 1.30” jaw opening

• Thin Jaw Profile for easier wire measurement in panels or in bundles

• Wide Voltage range to 600 AC/DC volts

• True-RMS for accurate measurement in all applications

• Built-In Voltage Detector and LED Work Light

• Thermocouple (dual banana) input for contact temperature measurement

• 600 uA DC for Flame Rectification

• High Contrast, White on Black Display with Backlight for easy reading

• Rugged over-molding increases durability and user grip

• Includes: Electrical Test Lead Set, Dual Banana Thermocouple, (2) AA Batteries, Manual
Scroll down for full product description

Item # Current RangeUnit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
MI2236-20600A AC Ea. Add
Item Specifications

Item # Current RangeVoltage RangeSafety RatingContact Temp. RangeUnit Of
Measure
Material
List for Quote
MI2236-20600A AC600V AC/DCCAT III 600V-40° F to Ea. Add
