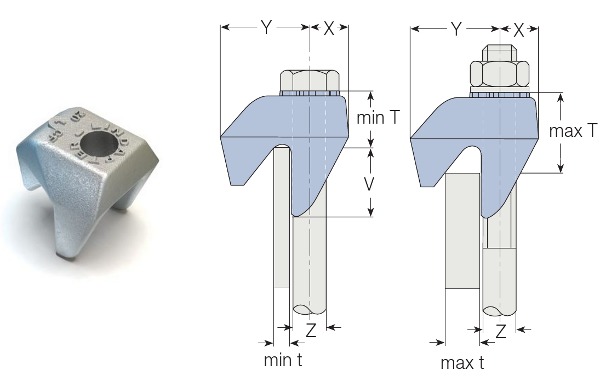

Type CF

High Friction Steel Clamp

• High friction clamp which hooks over flanges of beams, angles and channels

• Lindapter markings act as a unique anti-rotation device

• Can be combined with all Lindapter Girder Clamp products including Type AF

• SG iron; Hot dip galvanized finish

• Contact Edge for detailed specs and design data

• Ask about adjusted safe working loads when using Type CF clamps in conjunction with other Lindapter clamps (Type A & Type AF)
Scroll down for full product description

Item # Safe Working Loads (5:1 Factor Of Safety) Tensile/Safe Working Loads (2:1 Factor Of Safety) FrictionSafe Working Loads (2:1 Factor Of Safety) FrictionTorque (ft./lbs.)Unit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
LDLCF0501,91176487766 Ea. Add
LDLCF0623,5971,7982,248177 Ea. Add
LDLCF0755,9012,9223,597347 Ea. Add
Item Specifications
x

Item # Bolt Grade 5Safe Working Loads (5:1 Factor Of Safety) Tensile/Safe Working Loads (2:1 Factor Of Safety) FrictionSafe Working Loads (2:1 Factor Of Safety) FrictionTorque (ft./lbs.)Unit Of
Measure
 Material
List for Quote
LDLCF050[1/2]”1,91176487766 Ea. Add
LDLCF062[5/8]”3,5971,7982,248177 Ea. Add
LDLCF075[3/4]”5,9012,9223,597347 Ea. Add
