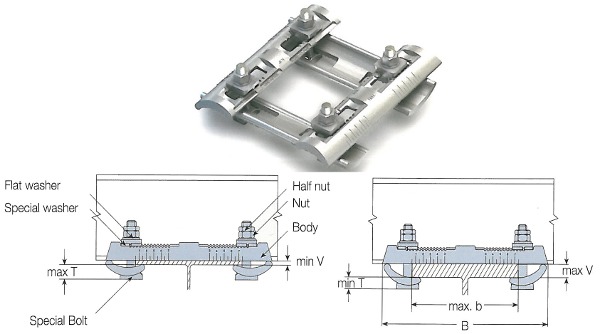

TYPE FC

Flush Clamp

• The Flush Clamp is a Girder Clamp System without the need of a location plate

• Suitable for connecting beams of varying widths and thicknesses

• Suitable for flanges up to 10° slope

• Forged Steel

• Bright Zinc plated plus JS500 finish

• Contact Edge for detailed specs and design data
Scroll down for full product description

Item # Special Bolt Size ZUnit Of
Measure
 PriceMaterial
List for Quote		Buy
Online
Expand Table to Show All Columns
LDLFCM16[5/8]” Ea. $ 167.03 Add Buy
Item Specifications
x

Item # Special Bolt Size ZSafe Working Loads (5:1 Factor of Safety) Tensile/Safe Working Loads (5:1 Factor of Safety) FrictionTorque ft.lb.Clamping Range Flange Thickness VClamping Range Flange Width bTBUnit Of
Measure
 PriceMaterial
List for Quote		Buy
Online
LDLFCM16[5/8]”6,7441,686108[3/16]”-[33”-7”[7/8]”-1[1/16]”12” Ea. $ 167.03 Add Buy
