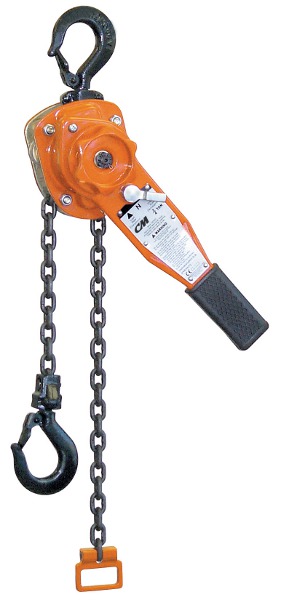

Columbus McKinnon Corp. Lever HoistSeries 653
• Ideal for construction and industrial applications • High quality, rugged, steel tool for close quarter pulling, stretching, and hoisting applications • Hardened steel load sharing gears • Double pawl arrangement for assured load control • Forged upper and lower hooks with heavy cast steel latches Scroll down for full product description
|
|
| Item # | Load Rating (tons) | Unit Of Measure |
Material List for Quote |
Item Specifications
| Item # | Load Rating (tons) | Lift or Reach (ft.) | Level Pull to Life Rated (lbs.) | Unit Of Measure |
Material List for Quote |
| CM5310 | [3/4] | 5 | 33 | Ea. | Add |
| CM5311 | [3/4] | 10 | 33 | Ea. | Add |
| CM5312 | [3/4] | 15 | 33 | Ea. | Add |
| CM5313 | [3/4] | 20 | 33 | Ea. | Add |
| CM5315 | 1[1/2] | 5 | 51 | Ea. | Add |
| CM5316 | 1[1/2] | 10 | 51 | Ea. | Add |
| CM5317 | 1[1/2] | 15 | 51 | Ea. | Add |
| CM5318 | 1[1/2] | 20 | 51 | Ea. | Add |
| CM5320 | 3 | 5 | 77 | Ea. | Add |
| CM5321 | 3 | 10 | 77 | Ea. | Add |
| CM5324 | [3/4] | - | - | Ea. | Add |
| CM5325 | 1[1/2] | - | - | Ea. | Add |
| CM5328 | 1 | 5 | 44 | Ea. | Add |
| CM5329 | 2 | 5 | 68 | Ea. | Add |
| CM5330 | 6 | 5 | 77 | Ea. | Add |
| CM5331 | 6 | 10 | 77 | Ea. | Add |
| CM5332 | 6 | 15 | 77 | Ea. | Add |
| CM5333 | 6 | 20 | 77 | Ea. | Add |
