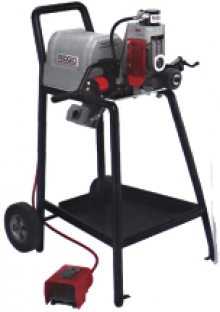

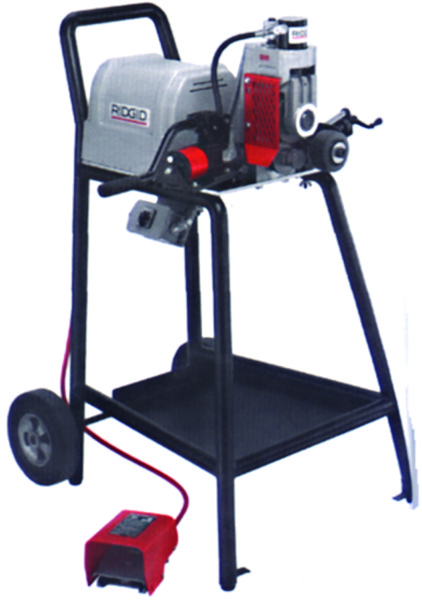

"The Ridgid® model 918-I is capable of grooving 1"" to 8"" schedule 40 and 1"" to 12"" schedule 10 pipe faster than any roll grooving machine in its class. Powered by a 1.2 HP universal motor and heavy duty transmission, the 918-I produces high quality grooves consistently and effortlessly.

The 918-I comes standard with a rugged wheel stand built for mobility in the shop without compromising stability. The stand's tray is tough enough to support 200 lbs.

The 918-I uses a custom-designed two-stage hydraulic pump that minimizes pipe flare, operator fatigue, and hydraulic fluid leaks.

Features

• Fastest roll groove time in its class (see roll groove time chart below)

• Custom engineered 2 stage 15 ton hydraulic pump and ram eases grooving and reduces flare and operator's fatigue

• Produces consistent, high quality roll grooves

• CSA approved

• Approved to UL standards (NRTLC)

Specifications

1""-12"" schedule 10 steel

1""-8"" schedule 40 steel

2""-6"" copper (types K, L, M, DMV)

2 1/2""-6"" schedule 80 PVC

Weight: 185 lbs./84.1 kg

Motor: universal 1.2 HP, 115v 60 Hz

Motor control: On/Off heavy-duty with foot switch

RPM: 45 (no load)

Standard equipment

One (1) 2""-6"" schedule 10/40 roll set

One (1) 8""-12"" schedule 10 (8"" schedule 40) roll set

One (1) tools for roll set changeout

One (1) carry case for roll sets

One (1) heavy duty wheel stand with tray

One (1) foot switch

One (1) 1""-12"" stabilizer for grooving nipples

Note: a roll set consists of a groove roll and a drive roll.

• Model No.: 918-I

• Description: Roll Grooving Machine Complete. 115V

• Weight (kg): 84,1"
