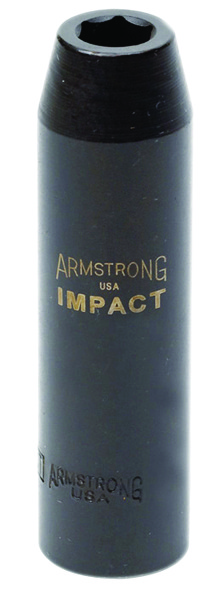

Armstrong® (Cooper Tools - Apex Division) "1/2"" Drive Impact Sockets"12-Point, Deep
"• Standard, deep and magnetic power sockets • Standard and deep impact sockets available in 6, 8 and 12 Pt. openings • Wide variety of power and impact extensions • New #5 spline drive impact sockets through 3"" • 2-1/2"" drive impact sockets through 8"" • Full range of adapters to choose from • In addition to having a greater wall thickness for added strength, impact sockets are heat treated to a lesser hardness, resulting in great stamina and resilience to impact" Scroll down for full product description
|
|
| Item # | Open. (in.) | Unit Of Measure |
Material List for Quote |
Item Specifications
| Item # | Open. (in.) | Wt. (lbs.) | Drive End (in.) | Wrench End (in.) | OA Lgth. (in.) | Bolt Clear. (in.) | Wrench Dpth. (in.) | Lgth. to Shoulder (in.) | Unit Of Measure |
Material List for Quote |
| AR20-212 | [3/8] | .33 | 0.875 | 0.625 | 3.250 | 0.397 | 0.281 | 0.625 | Ea. | Add |
| AR20-214 | [7/16] | .35 | 0.875 | 0.697 | 3.250 | 0.297 | 0.312 | 0.562 | Ea. | Add |
| AR20-216 | [1/2] | .38 | 0.937 | 0.785 | 3.250 | 0.359 | 0.344 | 0.625 | Ea. | Add |
| AR20-218 | [9/16] | .42 | 0.937 | 0.875 | 3.250 | 0.422 | 0.406 | 0.437 | Ea. | Add |
| AR20-220 | [5/8] | .45 | 1.000 | 1.000 | 3.250 | 0.484 | 0.453 | - | Ea. | Add |
| AR20-222 | [11/16] | .51 | 1.062 | 1.062 | 3.250 | 0.484 | 0.500 | - | Ea. | Add |
| AR20-224 | [3/4] | .55 | 1.125 | 1.125 | 3.250 | 0.547 | 0.562 | - | Ea. | Add |
| AR20-226 | [13/16] | .69 | 1.250 | 1.250 | 3.250 | 0.609 | 0.594 | - | Ea. | Add |
| AR20-228 | [7/8] | .82 | 1.312 | 1.312 | 3.500 | 0.672 | 0.625 | - | Ea. | Add |
| AR20-230 | [15/16] | .87 | 1.375 | 1.375 | 3.500 | 0.672 | 0.687 | - | Ea. | Add |
| AR20-232 | 1 | .94 | 1.437 | 1.437 | 3.500 | 0.672 | 0.750 | - | Ea. | Add |
| AR20-234 | 1[5/16] | 1.06 | 1.500 | 1.500 | 3.500 | 0.703 | 0.781 | - | Ea. | Add |
| AR20-236 | 1[1/8] | 1.17 | 1.562 | 1.562 | 3.500 | 0.797 | 0.812 | - | Ea. | Add |
| AR20-240 | 1[1/4] | 1.39 | 1.750 | 1.750 | 3.500 | 0.828 | 0.875 | - | Ea. | Add |
| AR20-242 | 1[5/16] | 1.51 | 1.875 | 1.875 | 3.500 | 0.953 | 0.875 | - | Ea. | Add |
| AR20-244 | 1[3/8] | 1.61 | 1.937 | 1.937 | 3.500 | 0.953 | 0.875 | - | Ea. | Add |
| AR20-246 | 1[7/16] | 1.78 | 2.000 | 2.000 | 3.500 | 1.016 | 0.875 | - | Ea. | Add |
| AR20-248 | 1[1/2] | 1.87 | 2.125 | 2.125 | 3.500 | 1.078 | 0.875 | - | Ea. | Add |
