Epcon (ITW Redhead) C6 Epoxy AdhesivesFast Curing
The hardener and resin are completely mixed as they are dispensed from the dual cartridge through a static mixing nozzle. The pre-mixed adhesive si injected directly into the anchor hole. C6 can be used with threaded rod or rebar. Advantages • 1 hour cure time • Works in damp holes and underwater applications • Minimum shrinkage-can be used in oversized holes and diamond cored holes • High heat deflection temperature: 140°F (ASTM D648) • One formula for both solid and hollow base materials • NSF standard 61 certified for drinking water systems • Extensively tested-earthquake, underwater, creep, freeze-thaw, radiation, fire, fatigue, electrical isolation, ozone and many more test programs have been conducted on C6 • Extensive use-C6 has been used on projects all over the world for over 13 years Features Anchorage to solid concrete Threaded rod (carbon or stainless steel) or rebar supplied by contractor; rod does not need to be chisel pointed C6 adhesives completely fills area between rod and hole creating a stress-free, high load anchorage Pre-drilled hole in concrete Scroll down for full product description
|
Item # | Desc. | Unit Of Measure |
Material List for Quote |
Item Specifications
Item # | Desc. | Box/Bag Qty. | Carton Qty. | Unit Of Measure |
Material List for Quote |

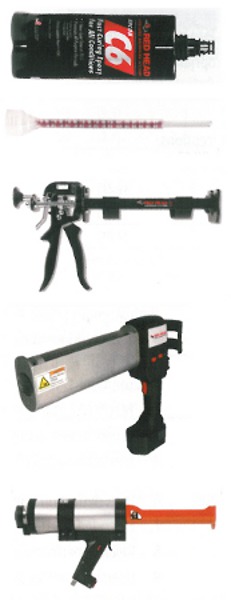

RAC6-18 | C6 Adhesive, 18 Fl. Oz. | 1 | 12 | Ea. | Add |
RAE101 | Hand Dispenser for C6-18 | 1 | 1 | Ea. | Add |
RAE200 | Pneumatic Dispenser for | 1 | 1 | Ea. | Add |
RAE24 | Mixing Nozzle (1/2 in. O | 4 | 24 | Ea. | Add |
RAE300 | Dosage Control Pneumatic | 1 | 1 | Ea. | Add |
RAE50 | Mixing Nozzle (11/16 in. | 5 | 20 | Ea. | Add |
