SIMPSON STRONG TIE

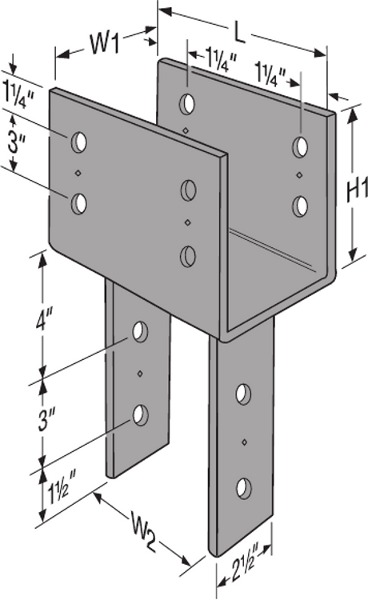

CC Column Caps

• Column caps provide a high capacity connection for column-beam combinations

• Material: CC3-1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7-1/2 7gauge, all others 3 gauge

• Finish: Simspon Strong-Tie® gray paint, may be ordered HDG, CCO, ECCO-no coating

Options:

• Straps my be rotated 90° where W1?W2

• For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given (note that the W2 dimension on straps rotated 90° is limited by the W1 dimension)
Scroll down for full product description

Item # Beam WidthUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
SNCC10610x Ea. Add
SNCC444x Ea. Add
SNCC464x Ea. Add
SNCC484x Ea. Add
SNCC6-7[1/8]6x Ea. Add
SNCC646x Ea. Add
SNCC666x Ea. Add
SNCC686x Ea. Add
SNCC868x Ea. Add
SNCC888x Ea. Add
Item Specifications
x

Item # Beam WidthW1 (in.)W2 (in.)L (in.)H1 (in.)Machine Bolts (qty. x dia.) BeamMachine Bolts (qty. x dia.) PostAllowable Loads DownAllowable Loads Uplift (160)Unit Of
Measure
 Material
List for Quote
SNCC10610x9[1/2]5[1/2]1384 x [3/4]2 x [3/4]52,2507,515 Ea. Add
SNCC444x3[5/8]3[5/8]742 x [5/8]2 x [5/8]15,3101,465 Ea. Add
SNCC464x3[5/8]5[1/2]116[1/2]4 x [5/8]2 x [5/8]24,0602,800 Ea. Add
SNCC484x3[5/8]7[1/2]116[1/2]4 x [5/8]2 x [5/8]24,0602,800 Ea. Add
SNCC6-7[1/8]6x5[1/2]7[1/8]116[1/2]4 x [5/8]2 x [5/8]37,8104,040 Ea. Add
SNCC646x5[1/2]3[5/8]116[1/2]4 x [5/8]2 x [5/8]28,5864,040 Ea. Add
SNCC666x5[1/2]5[1/2]116[1/2]4 x [5/8]2 x [5/8]30,2504,040 Ea. Add
SNCC686x5[1/2]7[/12]116[1/2]4 x [5/8]2 x [5/8]37,8104,040 Ea. Add
SNCC868x7[1/2]5[1/2]1384 x [3/4]2 x [3/4]41,2507,440 Ea. Add
SNCC888x7[1/2]7[1/2]1384 x [3/4]2 x [3/4]54,6007,440 Ea. Add
