SIMPSON STRONG TIE ECCLQ Column Caps

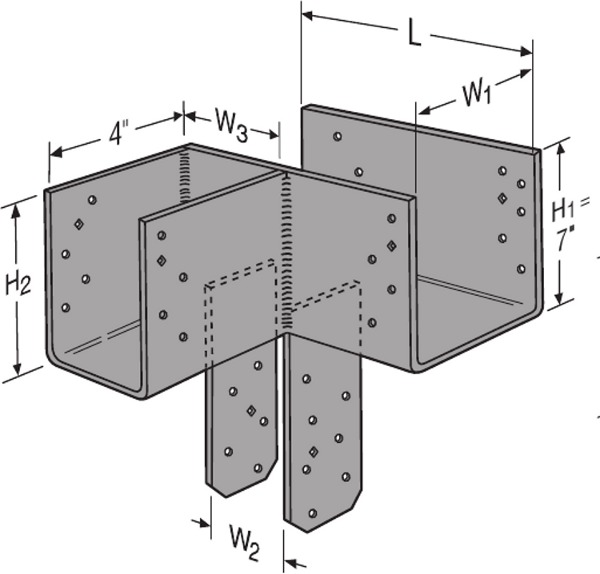

• The ECCLQ column caps provide high capacity, multiple beam to column connection options. The design uses Simpson Strong-Tie® Strong-Drive® screws (SDS) to provide faster installation and a lower profile compared to standard through bolts. Screws are configured to provide high uplift design values • Material: 7 gauge • Finish: Simpson Stron-tie® gray paint, also available in HDG Ordering: • The L dimension varies depending on the width of the side stirrup (W3 or W4). Contact Simpson Strong-Tie for exact dimensions • Main beam stirrup height is 7”. Side beam stirrups (H2 or H3) can vary in height with the minimum height of 7”. Specify the side stirrup height from the top of the cap • Example order: 4x Main beam, 6x Post, 4x Side beam (oriented to the left) is ordered as an ECCLLQ464SDS Scroll down for full product description
|
|
| Item # | Allowable Loads Uplift (160) Main Beab | Unit Of Measure |
