SIMPSON STRONG TIE ECCQ Column Caps
• Column caps provide a high capacity connection for column- beam combinations. This design uses Simpson Strong-Tie® Strong-Drive® SDS screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts • Material: 7 ga. • Finish: Simpson Strong-Tie® gray paint, available in HDG • For rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimensions on straps rotated 90° is limited by the W1 dimension) • Straps may be rotated 90° where W1?W2 Scroll down for full product description
|
|
| Item # | Beam Width | Unit Of Measure |
Material List for Quote |
Item Specifications

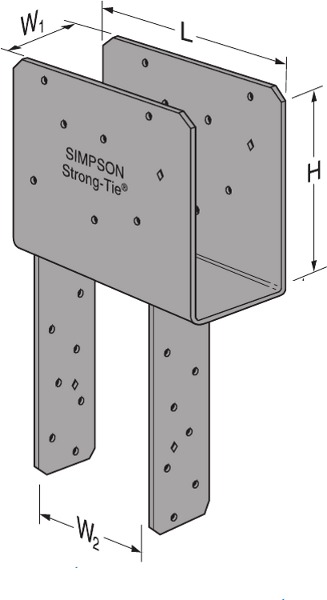

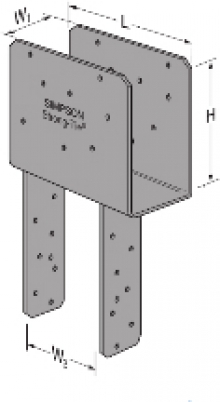

| Item # | Beam Width | W1 (in.) | W2 (in.) | L (in.) | H (in.) | No. of SDS [1/4]”x2[1/2]” Screws (Beam) | No. of SDS [1/4]”x2[1/2]” Screws (Post) | Allowable Loads Uplift (160) | Allowable Loads Down (100) | Unit Of Measure |
Material List for Quote |
| SNECCQ106SDS2.5 | 10x | 9[1/2] | 5[1/2] | 8[1/2] | 7 | 16 | 14 | 5,535 | 32,655 | Ea. | Add |
| SNECCQ44SDS2.5 | 4x | 3[5/8] | 3[5/8] | 8[1/2] | 7 | 16 | 14 | 4,040 | 7,665 | Ea. | Add |
| SNECCQ46SDS2.5 | 4x | 3[5/8] | 5[1/2] | 8[1/2] | 7 | 16 | 14 | 4,040 | 12,030 | Ea. | Add |
| SNECCQ48SDS2.5 | 4x | 3[5/8] | 7[1/2] | 8[1/2] | 7 | 16 | 14 | 4,040 | 16’045 | Ea. | Add |
| SNECCQ6-7.13SDS2.5 | 6x | 5[1/2] | 7[1/8] | 8[1/2] | 7 | 16 | 14 | 4,040 | 24,490 | Ea. | Add |
| SNECCQ64SDS2.5 | 6x | 5[1/2] | 3[5/8] | 8[1/2] | 7 | 16 | 14 | 4,040 | 12,030 | Ea. | Add |
| SNECCQ66SDS2.5 | 6x | 5[1/2] | 5[1/2] | 8[1/2] | 7 | 16 | 14 | 4,040 | 18,095 | Ea. | Add |
| SNECCQ68SDS2.5 | 6x | 5[1/2] | 7[1/2] | 8[1/2] | 7 | 16 | 14 | 4,040 | 25,780 | Ea. | Add |
| SNECCQ86SDS2.5 | 8x | 7[1/2] | 5[1/2] | 8[1/2] | 7 | 16 | 14 | 5,535 | 25,780 | Ea. | Add |
| SNECCQ88SDS2.5 | 8x | 7[1/2] | 7[1/2] | 8[1/2] | 7 | 16 | 14 | 5,535 | 35,155 | Ea. | Add |
