SIMPSON STRONG TIE

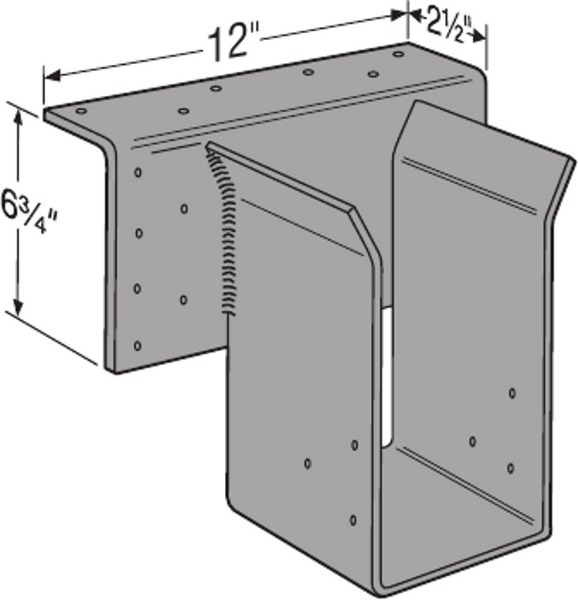

HGLT Top Flange Hangers

• HGLT hangers accommodate typical structural requirements for timber and glulam beams

• Material: All welded GL series glulam hangers have a 3 gauge top flange

• Finish: Simpson Strong-Tie® gray paint. HDG available
Scroll down for full product description

Item # Joist or Purlin SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
SNHGLT33[1/8] Lam Ea. Add
SNHGLT43[1/2] Lam Ea. Add
SNHGLT55[1/8] Lam Ea. Add
SNHGLT65[1/2] Lam Ea. Add
SNHGLT76[3/4] Lam Ea. Add
SNHGLT98[3/4] Lam Ea. Add
Item Specifications
x

Item # Joist or Purlin SizeGaugeW (in.)H (in.)B (in.)TF (in.)Allowable Loads Uplift (160)Allowable Loads Floor (100)Allowable Loads Snow (115)Allowable Loads Roof (125)Unit Of
Measure
 Material
List for Quote
SNHGLT33[1/8] Lam73[1/4]7[1/2] Min62[1/2]1,74511,59011,75511,865 Ea. Add
SNHGLT43[1/2] Lam73[9/16]7[1/2] Min62[7/8]1,74511,59011,75511,865 Ea. Add
SNHGLT55[1/8] Lam75[1/4]7[1/2] Min62[1/2]1,74511,93012,45512,750 Ea. Add
SNHGLT65[1/2] Lam75[9/16]7[1/2] Min62[7/8]1,74511,93012,45512,750 Ea. Add
SNHGLT76[3/4] Lam76[7/8]7[1/2] Min62[1/2]1,74511,93012,45512,750 Ea. Add
SNHGLT98[3/4] Lam78[7/8]7[1/2] Min62[1/2]1,74512,75012,75012,750 Ea. Add
