SIMPSON STRONG TIE HGU High Capacity Girder Hangers
• A high capacity girder hanger designed for situations where the header and joist are flush at the top • These products can used for retrofit on the framing members after they are temporarily placed in position • Simpson Strong-Tie® Strong-Drive® screws (SDS) make installation fast and easy, with no pre-drilling required • Finish: Galvanized Options: • Hot-dip galvanized available. Order as “X” version, specify HDG • Other seat widths available. Order as “X” version, specify width • HGU hangers may be skewed up to 45° Scroll down for full product description
|
|
| Item # | Gauge | Unit Of Measure |
Material List for Quote |
Item Specifications

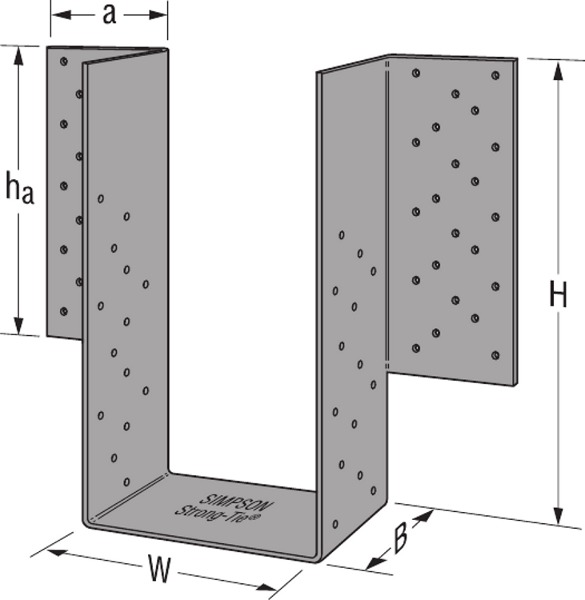

| Item # | Gauge | W (in.) | H (min.)(in.) | B (in.) | Ha (in.) | a (in.) | Unit Of Measure |
Material List for Quote |
| SNHGU3.63-SDS | 7 | 3[5/8] | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
| SNHGU5.25-SDS | 7 | 5[1/4] | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
| SNHGU5.50-SDS | 7 | 5[1/2] | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
| SNHGU5.62-SDS | 7 | 5[5/8] | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
| SNHGU7.00-SDS | 7 | 7 | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
| SNHGU9.00-SDS | 7 | 9 | 11 | 5[1/4] | 10[3/8] | 4[3/4] | Ea. | Add |
