SIMPSON STRONG TIE

HGUS Glulam Beam and Double Shear Joist Hangers

• Face mount hanger used for high load applications

• All hangers in this series have double shear nailing. This patented innovation distributes the load through two points on each joist nail for for greater strength. It also allows for the use of fewer nails, faster installation, and the use of common nails for connections

• Finish: Galvanized. Some products available in ZMAX® coating

Options:

• Concealed flanges are not available for HGUS

• Other sizes available, contact Simpson Strong-Tie
Scroll down for full product description

Item # Carried Member WidthUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
SNHGUS3.25/103[1/8] Glulam Ea. Add
SNHGUS3.25/123[1/8] Glulam Ea. Add
SNHGUS5.25/105[1/8] Glulam Ea. Add
SNHGUS5.25/125[1/8] Glulam Ea. Add
SNHGUS6.88/106[3/4] Glulam Ea. Add
SNHGUS6.88/126[3/4] Glulam Ea. Add
SNHGUS6.88/146[3/4] Glulam Ea. Add
Item Specifications
x

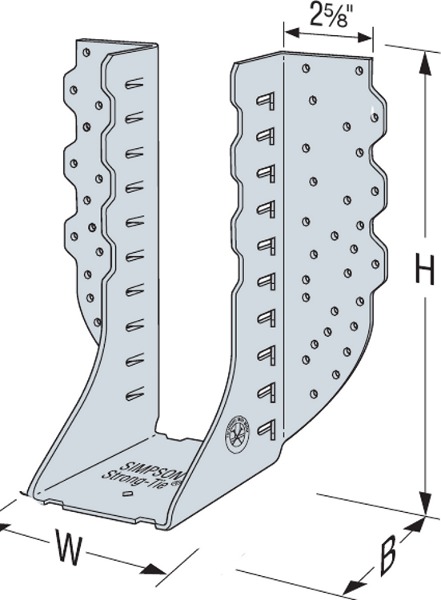

Item # Carried Member WidthGaugeW (in.)H (in.)B (in.)Unit Of
Measure
 Material
List for Quote
SNHGUS3.25/103[1/8] Glulam123[1/4]8[5/8]2[1/2] Ea. Add
SNHGUS3.25/123[1/8] Glulam123[1/4]10[5/8]4 Ea. Add
SNHGUS5.25/105[1/8] Glulam125[1/4]9[1/16]4 Ea. Add
SNHGUS5.25/125[1/8] Glulam125[1/4]10[9/16]4 Ea. Add
SNHGUS6.88/106[3/4] Glulam126[7/8]8[3/16]4 Ea. Add
SNHGUS6.88/126[3/4] Glulam126[7/8]10[3/16]4 Ea. Add
SNHGUS6.88/146[3/4] Glulam126[7/8]12[3/16]4 Ea. Add
