Holdowns are used to transfer tension loads between floors, to tie purlins to masonry or concrete, etc. Use HDAs and HDs for overturning requirements and other applications to transfer tension loads. All HDAs are self-jigging, ensuring code-required minimum 7 bolt diameter spacing from the end of the wood member to the center of the first bolt hole.

HDA Special Features:

• Single piece non-welded design results in higher capacity

• Load transfer plate eliminates the need for a seat washer

• Fewer inspection problems

Finish: Galvanized except HD14A - Simpson gray paint.

1. Allowable loads have been increased 33% for earthquake or wind loading with no further increase allowed; reduce where other loads govern.

2. Minimum post size is required to ensure the load carrying capacity of the critical net section meets the holdown capacity.

3. Minimum post size is required to ensure the load carrying capacity of the critical net section meets the holdown capacity.

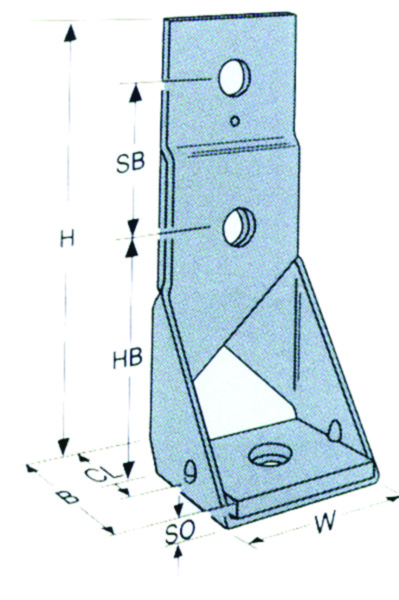

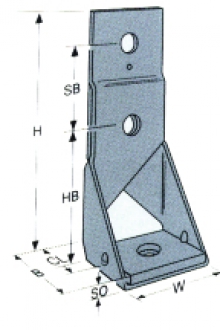

4. HB is the required minimum distance from the end of the stud to the center of the first stud bolt hole. End distance may be increased as necessary for installation.

4. The designer must specify anchor bolt type, length and embedment.

5. Lag bolts will not develop the listed loads.

6. Holdowns installed raised off the mudsill have larger deflection values. Consult Simpson for info.

7. Deflection at highest allowable design load: The deflection of a holdown measured between the anchor bolt and the strap portion of the holdown when loaded to the highest allowable load listed. This movement is strictly due to the holdown deformation under a static load test conducted on a steel jig.

8. For Hem Fir values request T-HEMFIR.
