Anvil

Steel Pipe Clamps

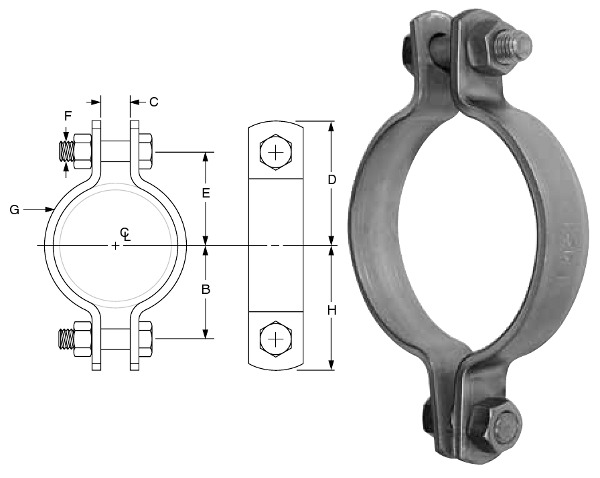

Figure 212 Pipe Clamp


"• Size Range: 1?2"" through 30""

• Material: Carbon steel

• Finish: Plain or Galvanized

• Recommended for suspension of cold pipe lines or hot lines where no insulation is required

• Maximum Temperature: Plain 750° F, Galvanized 450° F

• Approvals: Complies with Federal Specification A-A-1192A (Type 4), WW-H-171-E (Type 4), ANSI/MSS SP-69 and MSS SP-58 (Type 4). UL, ULC Listed and FM Approved Sizes 3?4""- 8"")

• Specify pipe size, figure number, name and finish

• Note: The “C” gap dimension ensures adequate clearance at the top attachment point for a weldless eye nut or other appropriate rod attachment. This gap may or may not be present on the bottom portion of the clamp"
Scroll down for full product description

Item # Pipe Size (in.)Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
AV212-11 Ea. Add
AV212-1-1/21[1/2] Ea. Add
AV212-1-1/41[1/4] Ea. Add
AV212-1/2[1/2] Ea. Add
AV212-1010 Ea. Add
AV212-1212 Ea. Add
AV212-1414 Ea. Add
AV212-1616 Ea. Add
AV212-1818 Ea. Add
AV212-22 Ea. Add
AV212-2-1/22[1/2] Ea. Add
AV212-2020 Ea. Add
AV212-2424 Ea. Add
AV212-33 Ea. Add
AV212-3-1/23[1/2] Ea. Add
AV212-3/4[3/4] Ea. Add
AV212-3030 Ea. Add
AV212-44 Ea. Add
AV212-55 Ea. Add
AV212-66 Ea. Add
AV212-88 Ea. Add
Item Specifications

Item # Pipe Size (in.)Span (ft.)*Max Load For Service Temp 650°F/750°FWeight (lbs.)B (in.)C (in.)Rod Take Out E (in.)H (in.)D (in.)F (in.)Unit Of
Measure
Material
List for Quote
AV212-117500/0.351[1/8][1/2]1[3/8]1[21/32]1[29/32][5/16] Ea. Add
AV212-1-1/21[1/2]9800/0.431[9/16][1/2]1[11/16]2[3/32]2[7/32][5/16] Ea. Add
AV212-1-1/41[1/4]7500/0.381[7/16][1/2]1[5/8]1[31/32]2[5/32][5/16] Ea. Add
AV212-1/2[1/2]7500/0.291[1/2]1[3/16]1[17/32]1[23/32][5/16] Ea. Add
AV212-1010222,490/2,22013.607[7/16]17[7/16]8[9/16]8[9/16][7/8] Ea. Add
AV212-1212232,490/2,22015.208[7/16]18[7/16]9[9/16]9[9/16][7/8] Ea. Add
AV212-1414202,490/2,22020.509[1/4]1[1/8]9[1/4]10[5/8]10[5/8][7/8] Ea. Add
AV212-1616152,490/2,22022.3010[1/4]1[1/8]10[1/4]11[5/8]11[5/8][7/8] Ea. Add
AV212-1818153,060/2,73031.6011[5/8]1[1/4]11[5/8]13131 Ea. Add
AV212-22101,040/9301.102[1/8][1/2]2[1/8]2[3/4]2[3/4][1/2] Ea. Add
AV212-2-1/22[1/2]111,040/9301.202[5/8][5/8]2[5/8]3[1/4]3[1/4][1/2] Ea. Add
AV212-2020123,060/2,73035.8012[3/4]1[3/8]12[3/4]14[1/8]14[1/8]1[1/8] Ea. Add
AV212-2424123,060/2,73053.1015[1/4]1[5/8]15[1/4]16[7/8]16[7/8]1[1/4] Ea. Add
AV212-33121,040/9301.402[7/8][5/8]2[7/8]3[1/2]3[1/2][1/2] Ea. Add
AV212-3-1/23[1/2]131,040/9301.503[3/16][5/8]3[3/16]3[13/16]3[13/16][1/2] Ea. Add
AV212-3/4[3/4]7500/0.331[1/8][1/2]1[1/4]1[21/32]1[25/32][5/16] Ea. Add
AV212-303093,500/3,360113.901921921[1/8]21[1/8]1[3/4] Ea. Add
AV212-44141,040/9301.803[1/2][5/8]3[1/2]4[1/4]4[1/4][1/2] Ea. Add
AV212-55161,040/9302.604[3/16][3/4]4[3/16]4[15/16]4[15/16][5/8] Ea. Add
AV212-66171,615/1,4405.404[7/8]1[1/4]4[7/8]5[3/4]5[3/4][3/4] Ea. Add
AV212-88191,615/1,4406.5061[1/4]66[7/8]6[7/8][3/4] Ea. Add
