Anvil

Beam Clamps

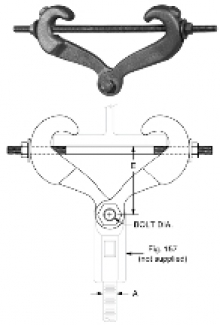

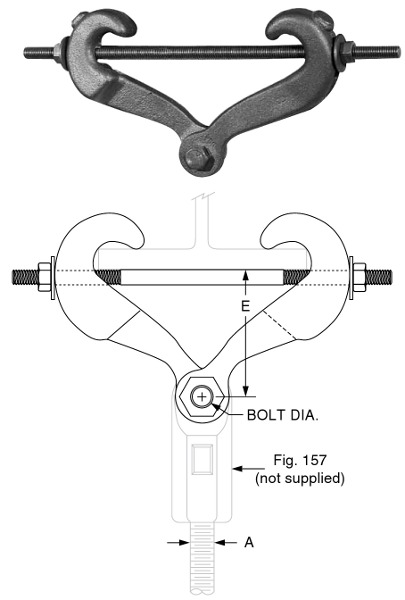

Figure 218 Malleable Beam Clamp Without Extension Piece


"• Material: Malleable iron jaw, steel tie rod, nuts and washer

• Finish: Plain or Galvanized

• Recommended for attachment to structural steel

• Use in conjunction with beams where beam widths are from 2-3?8"" minimum to 7"" maximum and flange thickness does

not exceed 0.60""

• Complies with Federal Specification A-A-1192A (Type 30)

WW-H-171-E (Type 30), ANSI/MSS SP-69 and MSS SP-58 (Type 30)

• UL, ULC Listed (Sizes 3?4"" - 12"" pipe size, when used with the Fig. 157 extension piece 3/8"" -7?8"" rod sizes)

• FM Approved (Sizes 3?4"" - 4” pipe size, when used with the Fig. 157 extension piece 3?8"" rod size)

• Installation: The malleable beam clamp Fig. 218 may be used with an eye rod, or Fig. 157 extension piece

• Features: Functional design insures proper fit for all beam sizes

• Tie rod locks clamp in place when nuts are tightened

• Ordering and stocking simplified because of one universal size

• Design allows hanger rod to swing from vertical providing

flexibility at the beam clamp

• Specify figure number, name and finish

• Note: When used with Fig. 157 extension piece, an

additional inch or more of vertical adjustment is obtained"
Scroll down for full product description

Item # Max Rod Size A (in.)Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
AV218[7/8] Ea. Add
Item Specifications

Item # Max Rod Size A (in.)Max Load (lbs.)Weight (lbs.)Rod Take Out (in.) Beam Flange Width 2-3/8”Rod Take Out (in.) Beam Flange Width 3”Rod Take Out (in.) Beam Flange Width 4”Rod Take Out (in.) Beam Flange Width 5”Rod Take Out (in.) Beam Flange Width 6”Rod Take Out (in.) Beam Flange Width 7”Bolt Dia. (in.)Unit Of
Measure
Material
List for Quote
AV218[7/8]1,3652.23[1/2]3[7/16]3[5/16]2[15/16]2[9/16]1[7/8][7/16] Ea. Add
