BAXTER-RUTHERFORD ICF, INC Pipe SupportsFigure 265 Adjustable Pipe Saddle Support
"• Size Range: 4"" through 36"" • Material: Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer. (14"" through 36"" carbon steel saddle with steel yoke. 4"" through 12"" steel saddle available upon special request) • Finish: Plain or Galvanized • Stanchion type support where vertical adjustment is required, plus the additional stability provided by U-bolt attachment to pipe • Complies with Federal Specification A-A-1192A (Type 38), WW-H-171-E (Type 39), ANSI/MSS SP-69 and MSS SP-58 • Installation: Adjustment is obtained by turning the locknut nipple. The lower end of the nipple is staked, upsetting the threads to prevent separation of nipple and coupling during adjustment • Features: Vertical adjustment of approximately 4-1?2"" • Saddle supports a broad range of pipe sizes • Specify pipe size to be supported, figure number, name and finish" Scroll down for full product description
|
Item # | Pipe Size (in.) | Unit Of Measure |
Material List for Quote |
Item Specifications

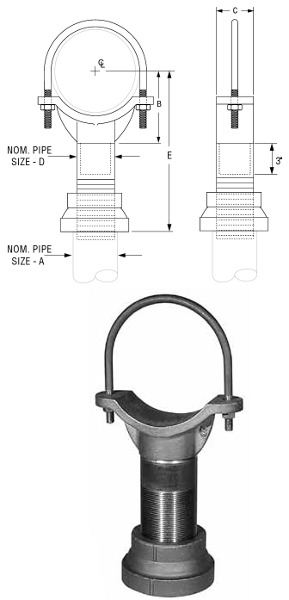

Item # | Pipe Size (in.) | Weight Complete (lbs.) | Weight Saddle Only (lbs.) | A (in.) | B (in.) | D (in.) | E Min. (in.) | E Max. (in.) | Width C (in.) | Max Load (lbs.) | Unit Of Measure |
Material List for Quote |
AV265-10 | 10 | 36.9 | 25.7 | 4 | 8[7/16] | 3 | 13[3/4] | 18[1/4] | 3[5/8] | 3,800 | Ea. | Add |
AV265-12 | 12 | 42.4 | 31.2 | 4 | 9[15/16] | 3 | 14[5/8] | 19[1/8] | 3[5/8] | 3,800 | Ea. | Add |
AV265-14 | 14 | 39.2 | 28.0 | 4 | 10[1/2] | 3 | 15[13/16] | 20[5/16] | 6 | 5,300 | Ea. | Add |
AV265-16 | 16 | 42.2 | 31.0 | 4 | 11[1/2] | 3 | 16[13/16] | 21[5/16] | 6 | 5,300 | Ea. | Add |
AV265-18 | 18 | 60.0 | 40.0 | 6 | 13[1/2] | 3[1/2] | 19[1/8] | 23[5/8] | 6 | 6,700 | Ea. | Add |
AV265-20 | 20 | 63.0 | 43.0 | 6 | 14[1/2] | 3[1/2] | 20[1/8] | 24[5/8] | 6 | 6,700 | Ea. | Add |
AV265-22 | 22 | 66.0 | 46.0 | 6 | 15[1/2] | 4 | 21[5/16] | 25[13/16] | 6 | 7,300 | Ea. | Add |
AV265-24 | 24 | 72.0 | 52.0 | 6 | 17[1/2] | 4 | 23[5/16] | 27[13/16] | 6 | 7,300 | Ea. | Add |
AV265-26 | 26 | 75.0 | 57.0 | 6 | 18[1/2] | 4 | 24[5/16] | 28[13/16] | 6 | 7,300 | Ea. | Add |
AV265-30 | 30 | 89.0 | 69.0 | 6 | 20[5/8] | 4 | 26[7/16] | 30[15/16] | 6 | 7,300 | Ea. | Add |
AV265-32 | 32 | 93.0 | 73.0 | 6 | 21[5/8] | 4 | 27[7/16] | 31[15/16] | 6 | 7,300 | Ea. | Add |
AV265-36 | 36 | 101.0 | 81.0 | 6 | 23[5/8] | 4 | 29[7/16] | 33[15/16] | 6 | 7,300 | Ea. | Add |
AV265-4 | 4 | 22.0 | 10.8 | 4 | 4[3/16] | 3 | 9[1/2] | 14 | 3[5/8] | 3,800 | Ea. | Add |
AV265-5 | 5 | 23.1 | 12.1 | 4 | 4[13/16] | 3 | 10[1/8] | 14[5/8] | 3[5/8] | 3,800 | Ea. | Add |
AV265-6 | 6 | 23.9 | 12.7 | 4 | 5[7/16] | 3 | 10[3/4] | 15[1/4] | 3[5/8] | 3,800 | Ea. | Add |
AV265-8 | 8 | 32.5 | 21.3 | 4 | 6[15/16] | 3 | 12[1/4] | 16[3/4] | 3[5/8] | 3,800 | Ea. | Add |
