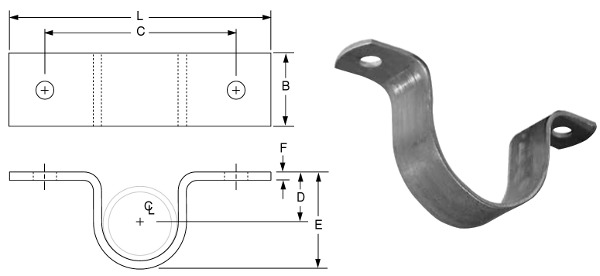

Figure 262 Short strap

"• Size Range: 1?2"" through 4""

• Material: Carbon steel

• Finish: Plain or Galvanized

• Maximum Temperature: 650° F

• Complies with Federal Specification A-A-1192A (Type 26), WW-H-171-E (Type 26), ANSI/MSS SP-69 and MSS SP-58 (Type 26)

• Specify pipe size, figure number, name and finish

• Note: The acceptability of galvanized coatings at temperatures above 450°F is at the discretion of the end user"
Scroll down for full product description

Item # Pipe Size (in.)Unit Of
List for Quote
Expand Table to Show All Columns
AV262-11 Ea. Add
AV262-1-1/21[1/2] Ea. Add
AV262-1-1/41[1/4] Ea. Add
AV262-1/2[1/2] Ea. Add
AV262-22 Ea. Add
AV262-2-1/22[1/2] Ea. Add
AV262-33 Ea. Add
AV262-3-1/23[1/2] Ea. Add
AV262-3/4[3/4] Ea. Add
AV262-44 Ea. Add
Item Specifications

Item # Pipe Size (in.)Max Load (w/Lag Screws / w/Bolts to Steel) (lbs.)Weight (lbs.)Screw or Bolt SizeL (in.)B (in.)C (in.)D (in.)E (in.)F (in.)Unit Of
List for Quote
AV262-11300/4100.26Two #18x2 4[3/4]1[1/4]3[1/2][11/16]1[5/8][1/8] Ea. Add
AV262-1-1/21[1/2]300/4100.54Two #18x2 5[3/8]1[1/4]4[1/8]1[3/8]2[1/2][1/8] Ea. Add
AV262-1-1/41[1/4]300/4100.36Two #18x2 51[1/4]3[3/4]1[1/16]2[1/8][1/8] Ea. Add
AV262-1/2[1/2]300/4100.20Two #18x2 41[1/4]2[3/4][1/2]1[1/8][1/8] Ea. Add
AV262-22300/4100.60Two #18x2 6[3/8]1[1/4]5[1/8]1[1/4]2[3/4][1/8] Ea. Add
AV262-2-1/22[1/2]450/6101.40Two #18x S6[13/16]1[1/2]5[9/16]1[3/4]3[5/8][1/4] Ea. Add
AV262-33450/6101.60Two #18x S7[5/16]1[1/2]6[1/16]1[7/8]4[1/4] Ea. Add
AV262-3-1/23[1/2]450/6101.80Two #18x S7[13/16]1[1/2]6[9/16]2[3/16]4[5/8][1/4] Ea. Add
AV262-3/4[3/4]300/4100.23Two #18x2 4[3/8]1[1/4]3[1/8][11/16]1[7/16][1/8] Ea. Add
AV262-44450/6101.90Two #18x S8[3/8]1[1/2]7[1/8]2[3/8]5[1/4] Ea. Add
