Unistrut, Pipe Hangers & Caddy » Hangers
ERICO PRODUCTS INC

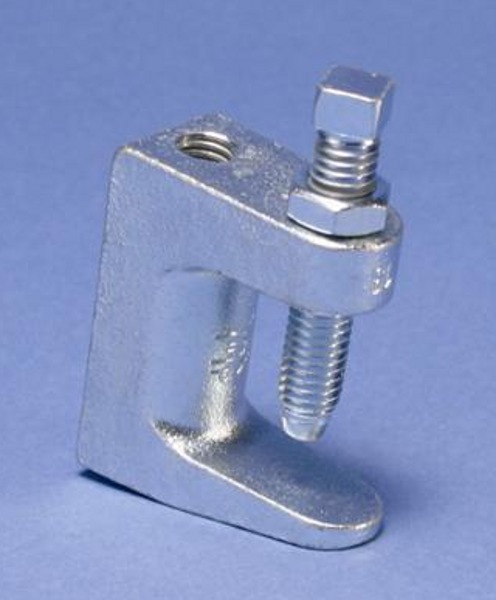

Universal Beam Clamp

Wide Mouth

Scroll down for full product description

Item # Rod SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
ES3100037EG[3/8]”-16 Ea. Add
ES3100037PL[3/8]”-16 Ea. Add
ES3100050EG[1/2]”-13 Ea. Add
ES3100050PL[1/2]”-13 Ea. Add
Item Specifications
x

Item # Rod SizeFlange Thickness (in.)Rec# Load (lbs.) BottomRec# Load (lbs.) TopFinishUnit Of
Measure
 Material
List for Quote
ES3100037EG[3/8]”-161[1/4]250 [Max]500 [Max]EG Ea. Add
ES3100037PL[3/8]”-161[1/4]250 [Max]500 [Max]PL Ea. Add
ES3100050EG[1/2]”-131[1/4]760 [Max]950 [Max]EG Ea. Add
ES3100050PL[1/2]”-131[1/4]760 [Max]950 [Max]PL Ea. Add
