Unistrut, Pipe Hangers & Caddy » Pipe Clamps
UNISTRUT INTERNATIONAL

Pipe Straps

P2558-XX

• Call to specify material and finish

Scroll down for full product description

Item # Nominal Pipe SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
UTP2558-05[1/2]” Ea. Add
UTP2558-05EG[1/2]” Ea. Add
UTP2558-07[3/4]” Ea. Add
UTP2558-07EG[3/4]” Ea. Add
UTP2558-101” Ea. Add
UTP2558-10EG1” Ea. Add
UTP2558-121[1/4]” Ea. Add
UTP2558-12EG1[1/4]” Ea. Add
UTP2558-151[1/2]” Ea. Add
UTP2558-15EG1[1/2]” Ea. Add
UTP2558-202” Ea. Add
UTP2558-20EG2” Ea. Add
UTP2558-252[1/2]” Ea. Add
UTP2558-25EG2[1/2]” Ea. Add
UTP2558-303” Ea. Add
UTP2558-30EG3” Ea. Add
Item Specifications
x

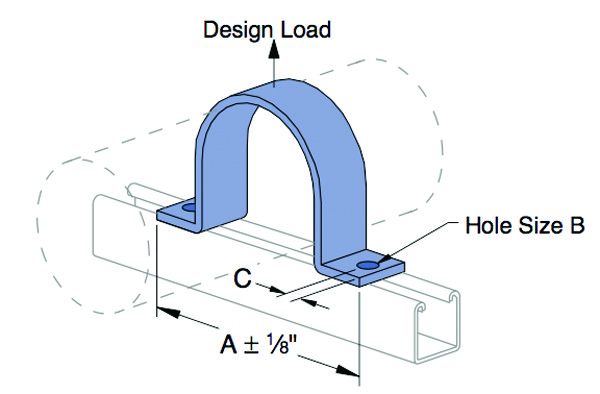

Item # Nominal Pipe Size‘A’ Size‘B’ Size‘C’ SizeThicknessDesign Load (lbs.)Wt/100 pcs (Lbs)FinishUnit Of
Measure
 Material
List for Quote
UTP2558-05[1/2]”2[7/8]”[9/32]”[7/16]”[1/8]”500 Ea. Add
UTP2558-05EG[1/2]”2[7/8]”[9/32]”[7/16]”[1/8]”50023Elec-Galv Ea. Add
UTP2558-07[3/4]”3[1/8]”[9/32]”[7/16]”[1/8]”500 Ea. Add
UTP2558-07EG[3/4]”3[1/8]”[9/32]”[7/16]”[1/8]”50026Elec-Galv Ea. Add
UTP2558-101”3[3/8]”[9/32]”[7/16]”[1/8]”500 Ea. Add
UTP2558-10EG1”3[3/8]”[9/32]”[7/16]”[1/8]”50031Elec-Galv Ea. Add
UTP2558-121[1/4]”3[3/4]”[9/32]”[7/16]”[1/8]”500 Ea. Add
UTP2558-12EG1[1/4]”3[3/4]”[9/32]”[7/16]”[1/8]”50035Elec-Galv Ea. Add
UTP2558-151[1/2]”3[7/8]”[9/32]”[7/16]”[1/8]”500 Ea. Add
UTP2558-15EG1[1/2]”3[7/8]”[9/32]”[7/16]”[1/8]”50039Elec-Galv Ea. Add
UTP2558-202”5[3/4]”[7/16]”[11/16]”[1/4]”1,000 Ea. Add
UTP2558-20EG2”5[3/4]”[7/16]”[11/16]”[1/4]”1,00094Elec-Galv Ea. Add
UTP2558-252[1/2]”6[1/4]”[7/16]”[11/16]”[1/4]”1,000 Ea. Add
UTP2558-25EG2[1/2]”6[1/4]”[7/16]”[11/16]”[1/4]”1,000114Elec-Galv Ea. Add
UTP2558-303”6[7/8]”[7/16]”[11/16]”[1/4]”1,000 Ea. Add
UTP2558-30EG3”6[7/8]”[7/16]”[11/16]”[1/4]”1,000133Elec-Galv Ea. Add
